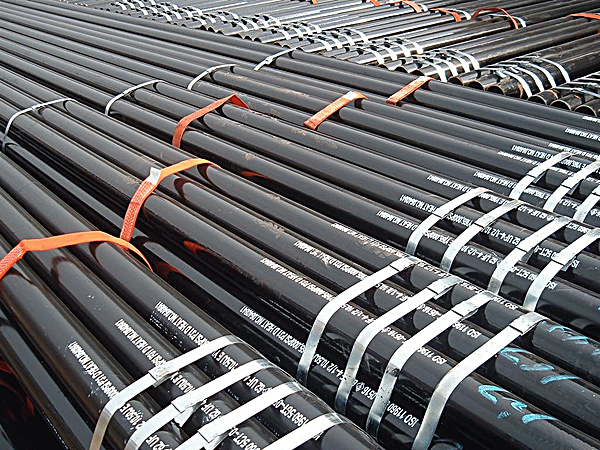

API Spec 5CT

API Spec 5CT Steel Pipe Dimension:

Label				D Outside diameter mm	Wall thickness t mm	C Type of end finish
1	2					H40	J55	L80	N80	C90
	NUT&C	EUT&C	IJ
1	2	3	4	5	9	10	11	12	13	14
1.9	2.75	2.9	2.76	48.26	3.68	PNUI	PNUI	PNUI	PNUI	PNUI
1.9	3.65	3.73	-	48.26	5.08	PU	PU	PU	PU	PU
1.9	4.42	-	-	48.26	6.35	-	-	P	-	P
2 3/8	4	-	-	60.32	4.24	PU	PN	PN	PN	PN
2 3/8	4.6	4.7	-	60.32	4.83	PNU	PNU	PNU	PNU	PNU
2 3/8	5.8	5.95	-	60.32	6.45	-	-	PNU	PNU	PNU
2 3/8	6.6	-	-	60.32	7.49	-	-	P	-	P
2 3/8	7.35	7.45	-	60.32	8.53	-	-	PU	-	PU
2 7/8	6.4	6.5	-	73.02	5.51	PNU	PNU	PNU	PNU	PNU
2 7/8	7.8	7.9	-	73.02	7.01	-	-	PNU	PNU	PNU
2 7/8	8.6	8.7	-	73.02	7.82	-	-	PNU	PNU	PNU
2 7/8	9.5	9.45	-	73.02	8.64	-	-	PU	-	PU
2 7/8	10.5	-	-	73.02	9.96	-	-	P	-	P
3 1/2	7.7	-	-	88.9	5.49	PN	PN	PN	PN	PN
3 1/2	9.2	9.3	-	88.9	6.45	PNU	PNU	PNU	PNU	PNU
3 1/2	10.2	-	-	88.9	7.34	PN	PN	PN	PN	PN
3 1/2	12.7	12.95	-	88.9	9.52	PU	PU	PU	PU	PU
3 1/2	14.3	-	-	88.9	10.92	-	-	P	-	P
3 1/2	15.5	-	-	88.9	12.09	-	-	P	-	P
4	9.5	-	-	101.6	5.74	PN	PN	PN	PN	PN
4	10.7	11	-	101.6	6.65	PU	PU	PU	PU	PU
4	13.2	-	-	101.6	8.38	-	-	P	-	-
4	16.1	-	-	101.6	10.54	-	-	P	-	-
4 1/2	12.6	12.75	-	114.3	6.88	PNU	PNU	PNU	PNU	PNU
4 1/2	15.2	-	-	114.3	8.56	-	-	P	-	P

API Spec 5CT Steel Pipe Mechanical Properties:

Group	Grade	Type	Total elongation under load %	Yield strength MPa		Tensile strength min MPa	Hardness max
				Min	Max		HRC	HBW
1	2	3	4	5	6	7	8	9
2	J55	-	0.5	379	552	517	-	-
	K55	-	0.5	379	552	655	-	-
	N80	1	0.5	552	758	689	-	-
	N80	Q	0.5	552	758	689	-	-
3	L80	1	0.5	552	655	655	23
	L80	9Cr	0.5	552	655	655	23	241
	L80	13Cr	0.5	552	655	655	23	241
	C90	12	0.5	621	724	689	23	241
	C95	-	0.5	655	758	724	-	-
	T95	12	0.5	655	758	724	25.4	255
	P110	-	0.6	758	965	862	-	-
4	Q125	ALL	0.65	862	1034	931

The delivery state for API Spec 5CT steel pipe(tubing, pup joints, casing, plain-end casing liners), specifications of this steel pipe standard can be varied by shape, processing method, etc, or any kind of custom requirements can be offered in advance for us, ourway is always your solid API Spec 5CT steel pipe supplier.

API SPEC 5CT pup joints is able to adjust full length tubing height to required point, ourway is able to supply a wide range of API SPEC 5CT steel tube products, you can find more product details in the charts.
